Filter Bag Cages Guide: Fit, Wire Count and Venturi Options

Filter bag cages can shorten the life of a new bag even when its media is suitable. A bent, rough, corroded or incorrectly sized cage can rub the fabric, damage seams and interfere with cleaning. Inspect the support and the bag together before reusing an old cage.

For replacement orders, cage review should happen before the bags are produced, not after the new bags are already on site.

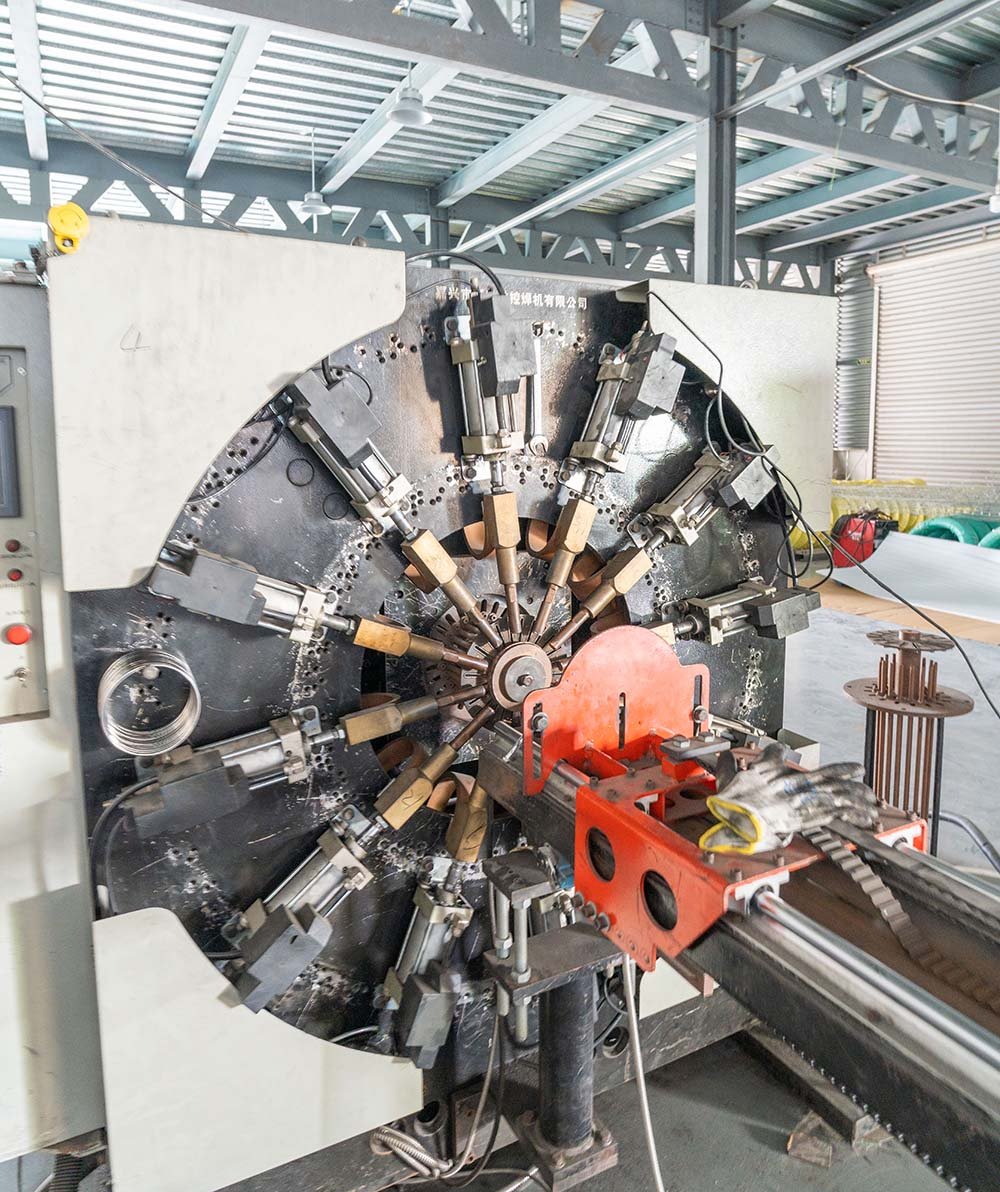

Filter cage forming machine with welding stations in the Pinnacle Filter factory — Cage forming equipment supports repeatable wire alignment, weld location and ring spacing before final inspection.

Filter bag cages: why fit matters

The cage supports the bag during filtration and cleaning. During pulse cleaning, the bag moves against the cage. If the contact surface is sharp or the cage is not straight, the fabric takes the damage first.

Cage item	Problem if ignored
Diameter	Too large can overstretch the bag; too small can cause poor support.
Ring spacing	Wide or uneven spacing can create local bag movement and wear.
Weld condition	Sharp weld points can cut the bag under pulse movement.

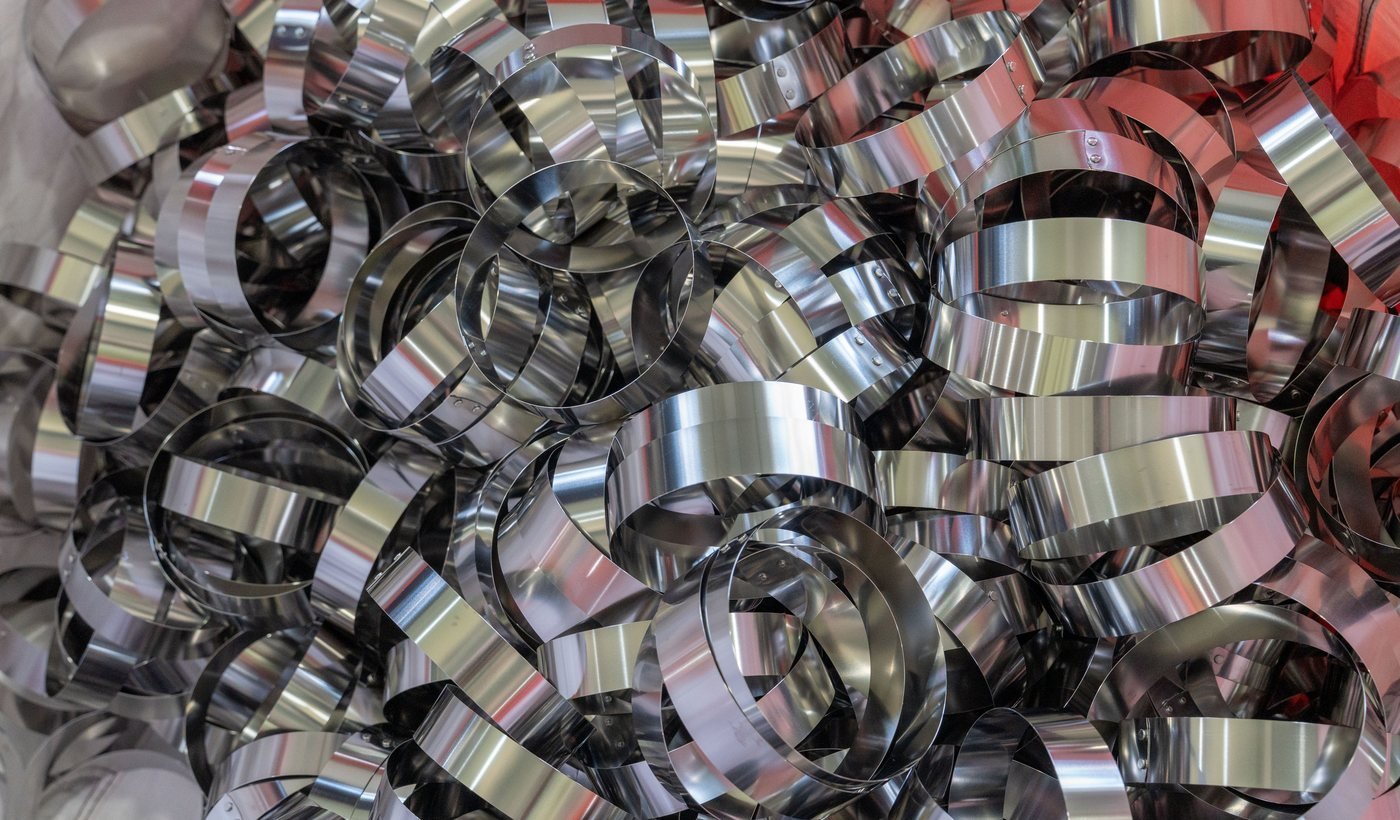

Top design	Venturi, flange or split ring must match the bag top and tube sheet.
Surface finish	Corrosion or poor coating can shorten bag life.

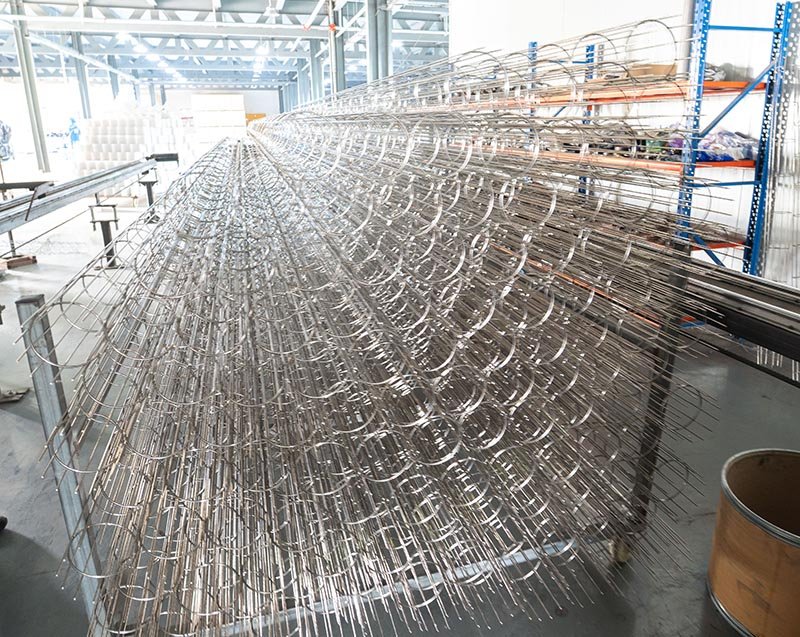

Finished dust collector filter cages prepared for final inspection — Finished filter cages should be checked for straightness, wire count, ring spacing and top construction before matching new filter bags.

Do Not Reuse Old Cages Too Quickly

Old cages may look acceptable from a distance. Check them by hand and by measurement. Look for rust, broken wires, loose welds, deformation and rough spots. If several bags failed in the same position, the cage pattern is often part of the answer.

If corrosion or surface roughness is present, compare galvanized, silicone-coated and stainless steel filter cages against the gas chemistry, temperature and coating specification before choosing a replacement finish.

What To Send For Cage Matching

Cage diameter and total length.
Number of vertical wires and ring spacing.
Top style: venturi, flange, split ring or special connection.
Material and finish: carbon steel, galvanized steel, stainless steel or coating.
Photos of old cages and failed bag wear marks.

For cage matching, review the Filter Cages page or start a cage-and-bag replacement review with photos and dimensions. A clean cage can protect the service life of a premium industrial filter bag.
