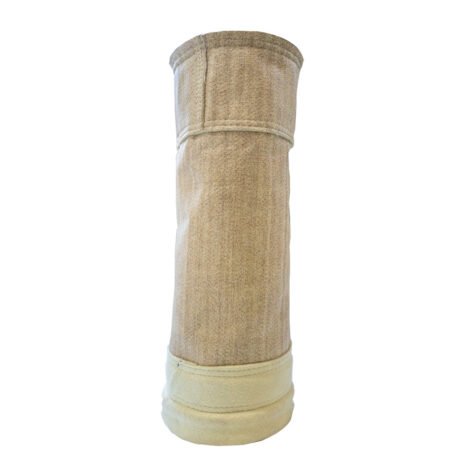

Aramid Filter Bag
Aramid / Nomex filter bags are used for asphalt mixing and hot gas dust collection where heat and abrasion resistance matter.
- Typical use: asphalt plants, kiln tail, metal processing and other hot gas baghouse systems.
- Options: PTFE membrane, oil/water repellent finish, reinforced bottom and custom top design.
- Selection note: acid gas, moisture, rough cages and aggressive pulse cleaning can shorten bag life.
Send temperature profile, dust type, cleaning method and current failure pattern for review.
Description
Asphalt and hot gas baghouse duty
Aramid Nomex Filter Bags for Asphalt and Hot Gas Dust
Aramid filter bags are selected when heat and mechanical stress rise above standard polyester conditions, especially in asphalt mixing and other hot gas baghouses.
Plant-side scenarios
Where Aramid Bags Are Usually Reviewed
Asphalt mixing
Hot aggregate drying, asphalt smoke and abrasive dust.
Kiln tail or hot dust
Moderate high-temperature systems needing better heat resistance.
Metal processing
Hot particulate collection where abrasion matters.
Replacement upgrades
When polyester bag life is too short under heat.
Failure prevention
What Can Shorten Aramid Bag Life
Aramid is strong, but it is not magic. The surrounding system still decides service life.
Compare High-Temperature Options
If the main issue is fine dust emission, compare P84. If corrosion is severe, compare PTFE. If dimensional stability at high heat matters, compare fiberglass.

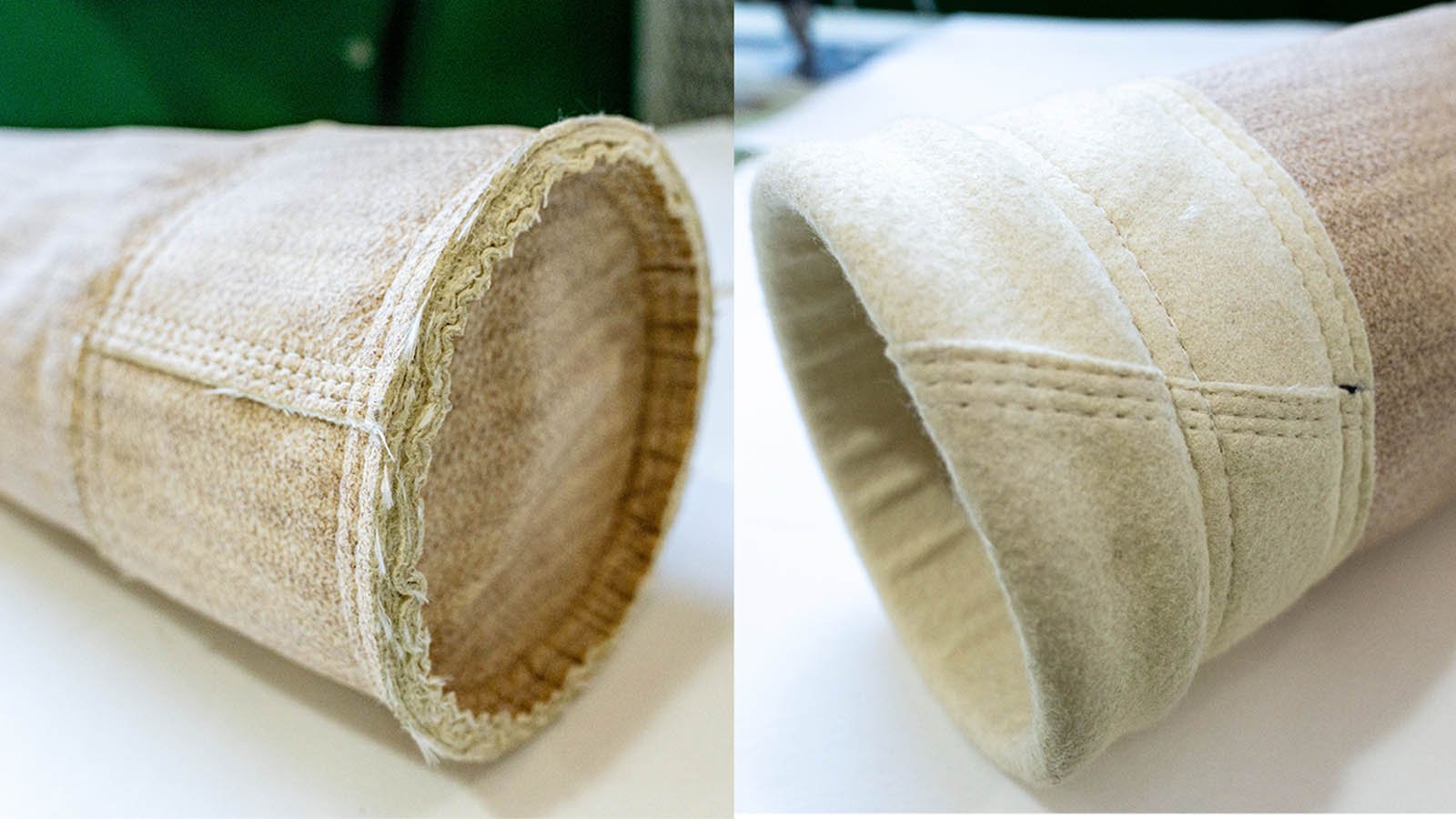

Made to fit the collector
Construction Options Buyers Usually Ask For
Snap band top
Common pulse-jet top construction for fast installation.
Ring or flange top
Matched to older or special collector designs.
Reinforced bottom
Useful where bottom wear is common.
PTFE membrane option
Considered when dust release or emission target is strict.
Technical selection guide
Aramid (Nomex) Filter Bag Specifications, Applications and Selection Notes
Aramid / Nomex filter bags are selected for asphalt mixing plants and hot gas dust collectors where standard polyester cannot handle heat and mechanical stress. The final finish still depends on acid gas, moisture, dust release and cage condition.
| Typical temperature direction | High-temperature dust collection; confirm continuous and peak temperature. |
|---|---|
| Dust condition | Hot gas, asphalt smoke, abrasive dust or process dust with heat stress. |
| Options | PTFE membrane, water/oil repellent finish, anti-abrasion reinforcement and custom sewing. |

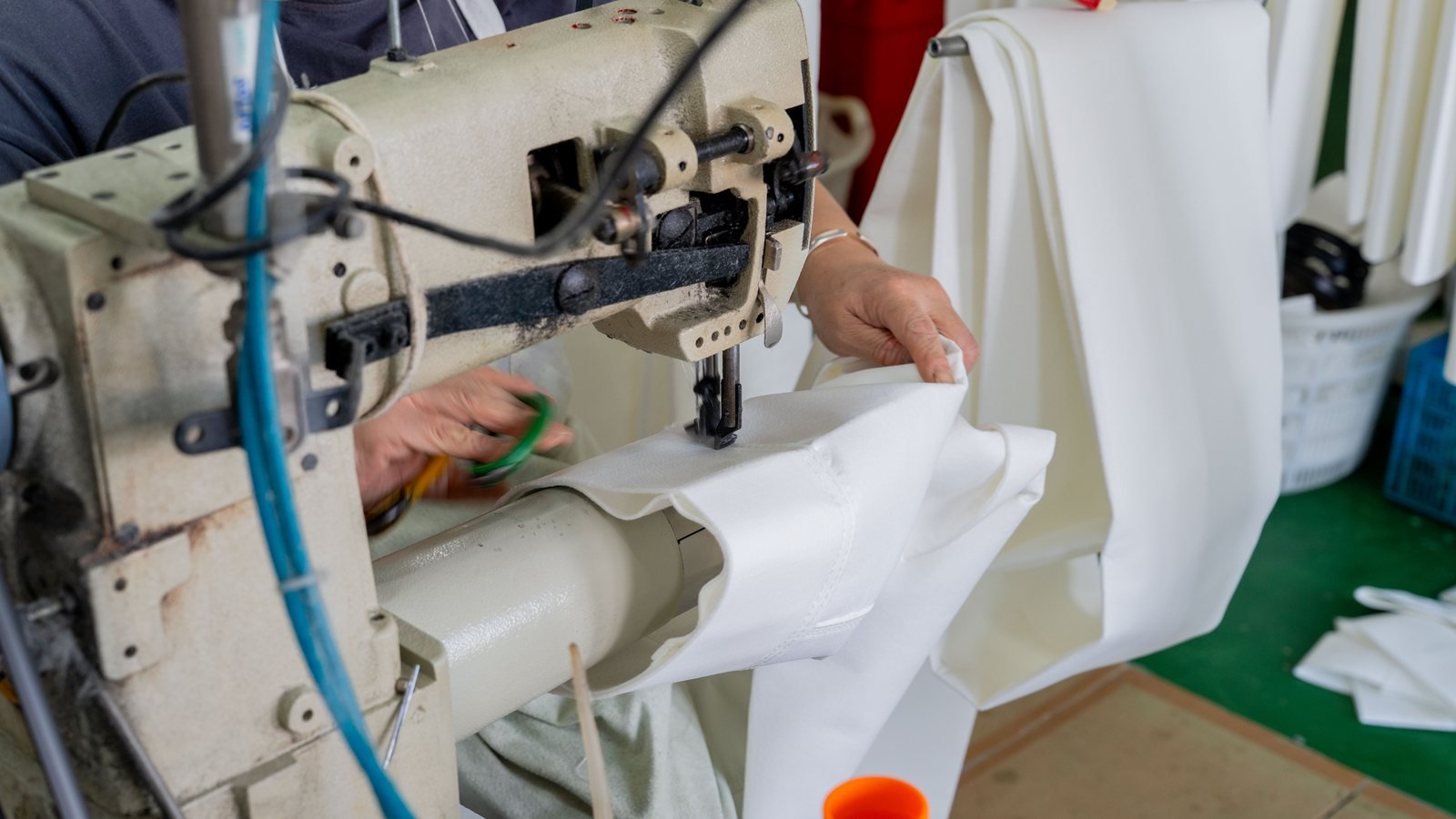

| Custom construction | Snap band, ring top, flange top, reinforced bottom and seam design. |
Where This Aramid (Nomex) Filter Bag Is Commonly Used
Asphalt mixing plants
Hot aggregate drying and asphalt smoke/dust collection.
Cement and minerals
Hot gas lines where polyester is not enough.
Metal processing
High-temperature dust and mechanical stress.
Replacement upgrades
When current bags fail from heat or abrasion.
Operating Boundaries to Check
- Acid gas and moisture: Can shorten aramid bag life; PPS or PTFE may need comparison.
- Severe chemical corrosion: PTFE may be more suitable.
- Fine emission priority: P84 or membrane options should be reviewed.
- Rough cages: Can damage aramid bags quickly.
Common Failure Causes
- Abrasion streaks: Cage roughness, inlet velocity or bottom impact may be high.
- Hardening / brittleness: Temperature, oxygen or gas chemistry should be checked.
- Poor dust release: Finish or membrane option may be wrong.
- Top leakage: Snap band and tube sheet condition need review.
Selection Advice from Pinnacle Filter
Choose aramid when heat and abrasion are the main concerns, especially in asphalt plants. Before quoting, Pinnacle should review temperature profile, gas chemistry, dust load, cage condition and current bag failure pattern.
Related product pages and next steps
Pinnacle Filter Support
Ask for an Aramid Bag Review for Hot Gas Dust
Send temperature profile, dust type, bag size, cleaning method and current failure pattern. Pinnacle will help match finish and construction.
Fast RFQ checklist
Buyer Questions
FAQ
Is aramid the same as Nomex?
Nomex is a well-known aramid fiber name. Buyers often search both terms.
Where is aramid used?
Asphalt mixing, cement, metal processing and hot gas dust collectors.
What should I check before ordering?
Temperature, moisture, acid gas, abrasion, cage condition and top/bottom design.
