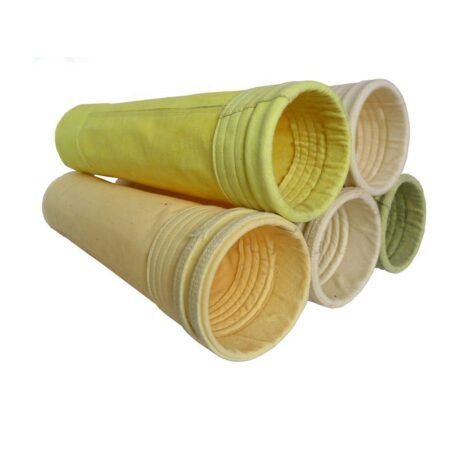

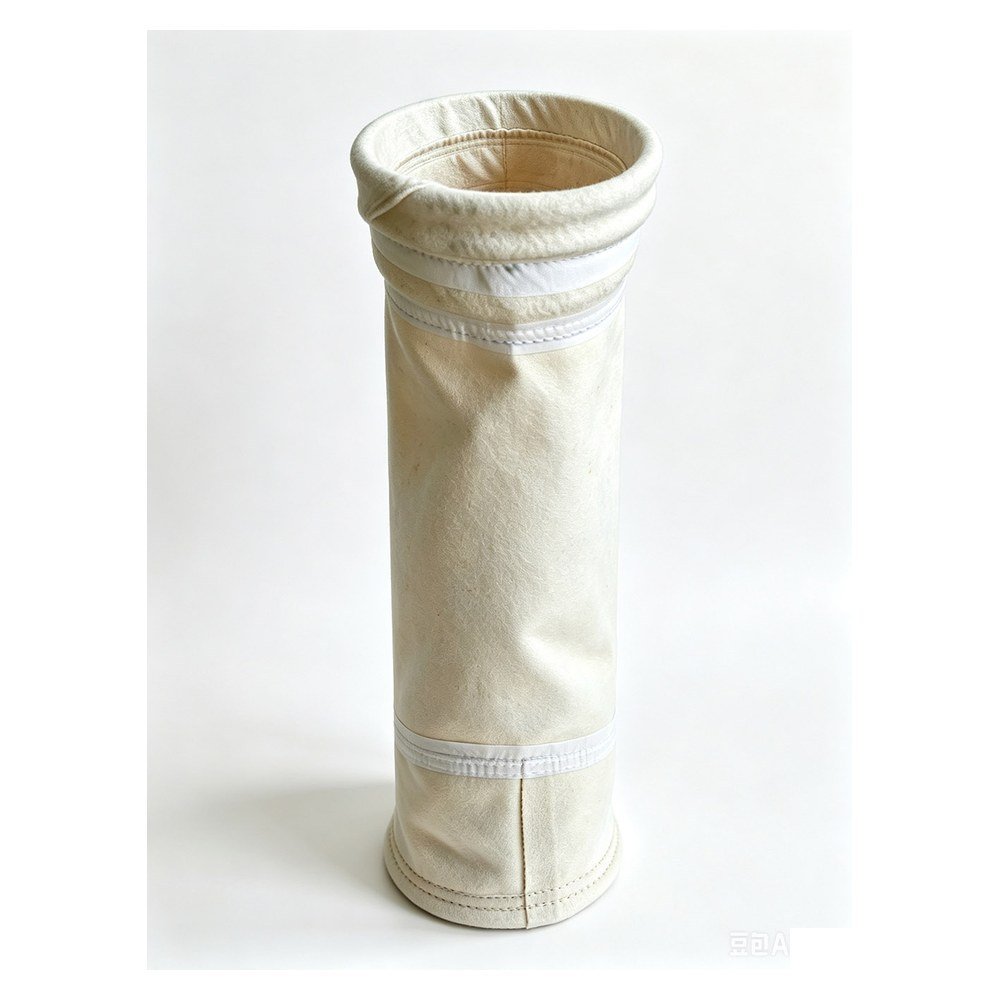

PPS Filter Bag
PPS filter bags are designed for coal boilers, dryers and acid gas dust collection where polyester may fail too quickly.
- Typical use: coal-fired boilers, acid gas, moisture and hydrolysis-prone working conditions.
- Options: PTFE membrane, anti-static design, oil/water repellent finish and reinforced sewing.
- Selection note: oxygen level, moisture and gas chemistry should be confirmed before quoting.
Send temperature, oxygen, moisture, dust type, gas condition and current bag life for PPS selection.
Description
Coal boiler and acid gas filtration
PPS Filter Bags for Coal Boilers, Dryers and Acid Gas Dust
PPS is a workhorse for baghouses where moisture, acid gas and moderate high temperature make ordinary polyester unreliable.
Condition matrix
PPS Operating Logic
| Working condition | PPS direction |
|---|---|
| Coal-fired boiler | Strong candidate when moisture and acid gas are present. |
| High oxygen | Needs checking because excessive oxygen may accelerate aging. |
| Fine or sticky dust | PTFE membrane or finish may improve dust release and emission stability. |
| Combustible dust | Conductive PPS can be reviewed with plant safety requirements. |
Failure mode thinking
Problems PPS Is Designed to Solve
Hydrolysis damage
Moisture and heat can weaken ordinary polyester and shorten bag life.
Acid gas aging
SOx, NOx or acidic components require more careful media selection.
Pressure drop instability
Wrong finish or dust cake behavior increases fan load.
Unexpected shutdown
Correct media and construction reduce rushed replacement purchasing.
Replacement review
Old Bag Photos Help Diagnose PPS Projects
For PPS, the failure pattern is often more useful than the product name.
Compare Nearby Choices
PPS is not always the final answer. Severe corrosion may need PTFE, while dry normal dust may still use polyester.
Technical selection guide
PPS Filter Bag Specifications, Applications and Selection Notes
PPS filter bags are often used where polyester cannot handle moisture, acid gas or hydrolysis risk. Coal-fired boilers, dryers and acid gas dust collectors usually need more than a simple temperature check before a PPS filter bag is recommended.
| Typical temperature direction | Moderate high-temperature operation; confirm continuous temperature, peak temperature and oxygen level. |
|---|---|
| Gas condition | Moisture, SOx/NOx, acid gas and hydrolysis-prone environments. |
| Options | PTFE membrane, anti-static PPS, water/oil repellent finish and reinforced sewing. |

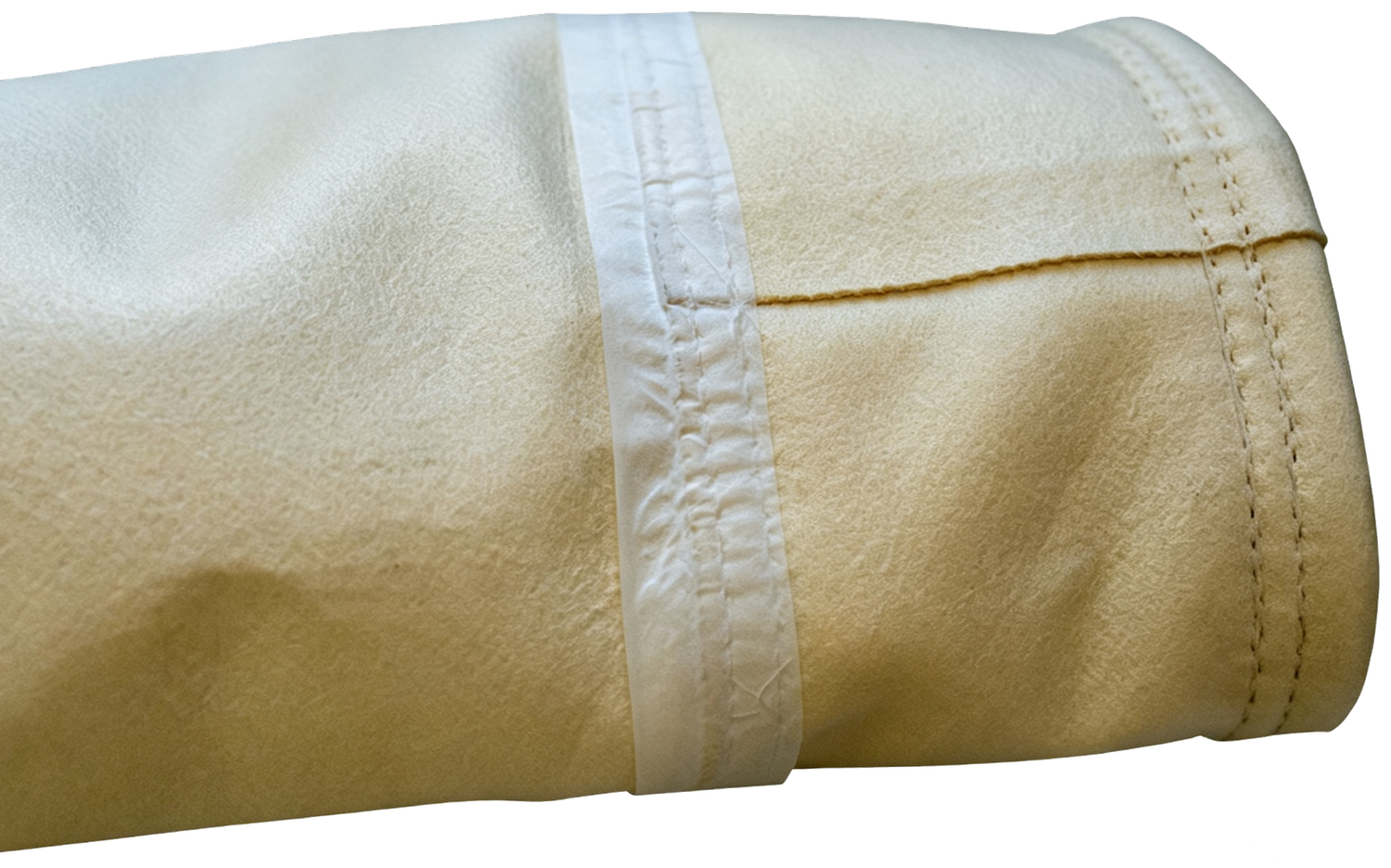

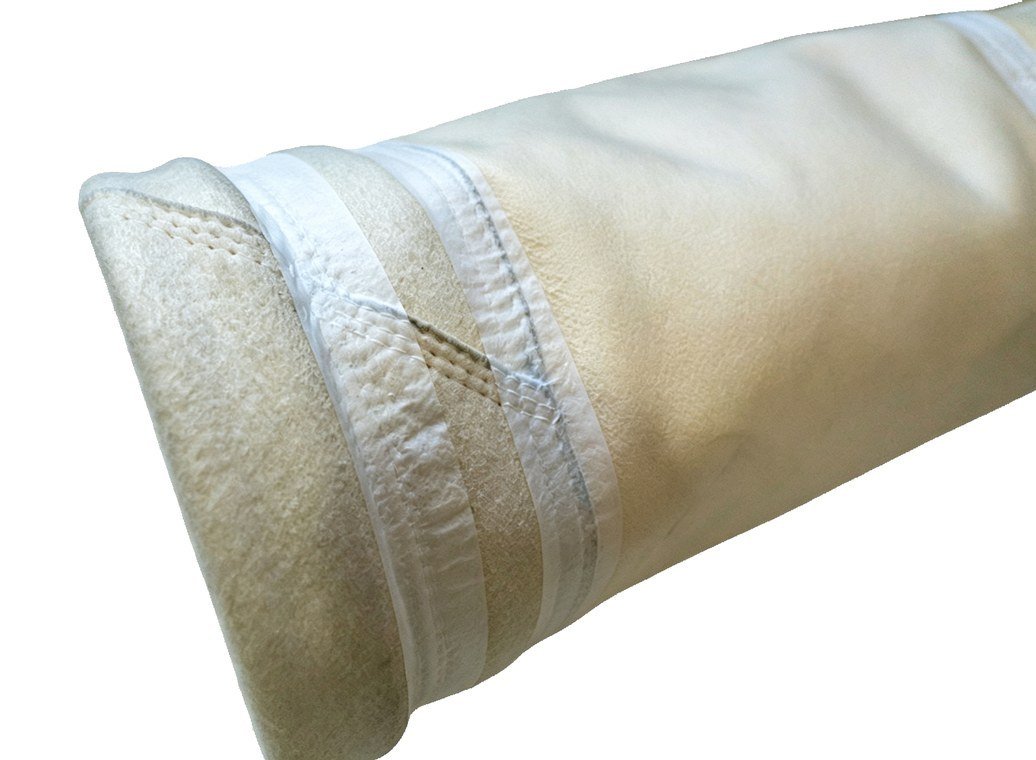

| Custom construction | Snap band, ring top, flange top, bottom reinforcement and PTFE thread when required. |
Where This PPS Filter Bag Is Commonly Used
Coal-fired boilers
A common PPS application when moisture and acid gas are present.
Industrial dryers
Where hydrolysis and temperature must be checked together.
Power plants
Often selected for baghouse systems after ESP or boiler processes.
Chemical dust
Useful when gas condition fits PPS resistance range.
Operating Boundaries to Check
- High oxygen level: Can shorten PPS life and should be checked carefully.
- Severe corrosion: PTFE may be a better comparison.
- Dry normal dust: Polyester may be more economical.
- Fine sticky dust: PTFE membrane or finish may be needed.
Common Failure Causes
- Brittle bag body: Oxidation, acid gas or temperature may be stronger than assumed.
- Sticky dust cake: Surface finish or cleaning condition may be wrong.
- Frequent pressure drop rise: Dust release, air-to-cloth ratio and pulse settings should be reviewed.
- Bottom wear: Cage fit and inlet dust impact may be damaging the bag.
Selection Advice from Pinnacle Filter
PPS should be selected from real flue gas data, not only from a catalog temperature. Send moisture, oxygen level, acid/alkali condition, dust load, cleaning method and current bag life for a more reliable recommendation.
Related product pages and next steps
Pinnacle Filter Support
Ask for a PPS Material Recommendation Before Ordering
Send moisture, oxygen, gas chemistry, temperature, dust type and current bag life. Pinnacle will help confirm PPS weight, finish and construction.
Fast RFQ checklist
Buyer Questions
FAQ
Is PPS better than polyester?
For moisture, hydrolysis and acid gas, yes. For dry normal-temperature dust, polyester may be more economical.
Can PPS use PTFE membrane?
Yes. It can improve surface filtration, dust release and emission control.
What is the biggest PPS selection risk?
High oxygen, wrong gas chemistry assumptions and poor cage condition can shorten service life.
