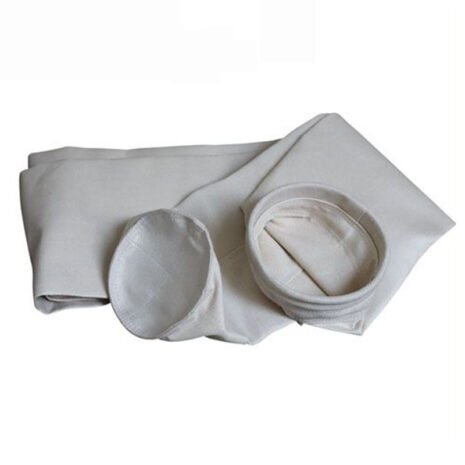

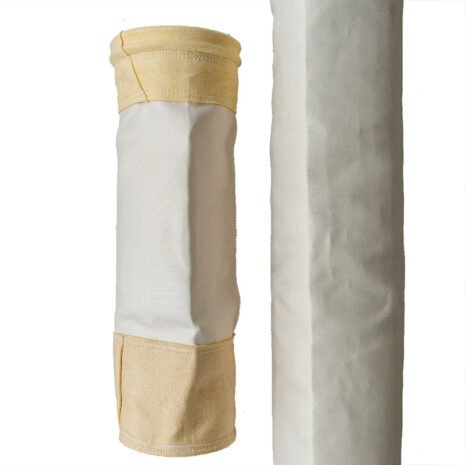

Fiberglass Filter Bag
Fiberglass filter bags are built for high-temperature baghouse dust collection where dimensional stability matters.
- Typical use: cement kiln, clinker cooler, steel, foundry, carbon black and incineration dust collection.
- Options: PTFE membrane, acid treatment, PTFE sewing thread, reinforced bottom and custom top design.
- Selection note: cage quality, pulse pressure, handling and bag-to-cage fit strongly affect service life.
Send bag size, working temperature, gas chemistry, dust type and current problem for a fiberglass recommendation.
Description
High-temperature woven media

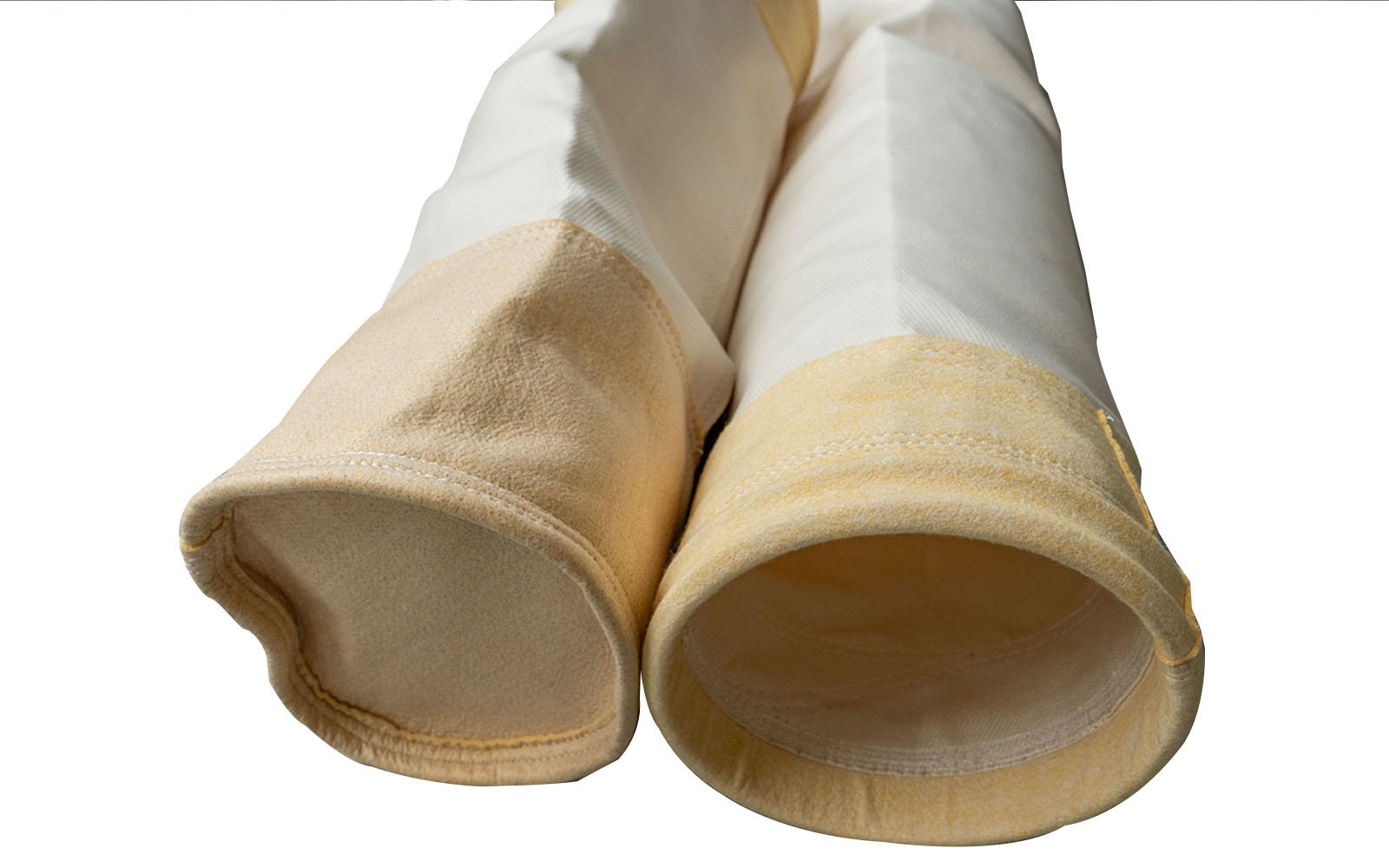

Fiberglass Filter Bags for High-Temperature Baghouse Duty
Fiberglass filter bags are built for high-temperature dust collectors where dimensional stability, woven media and optional PTFE membrane or acid treatment are important.
Material story

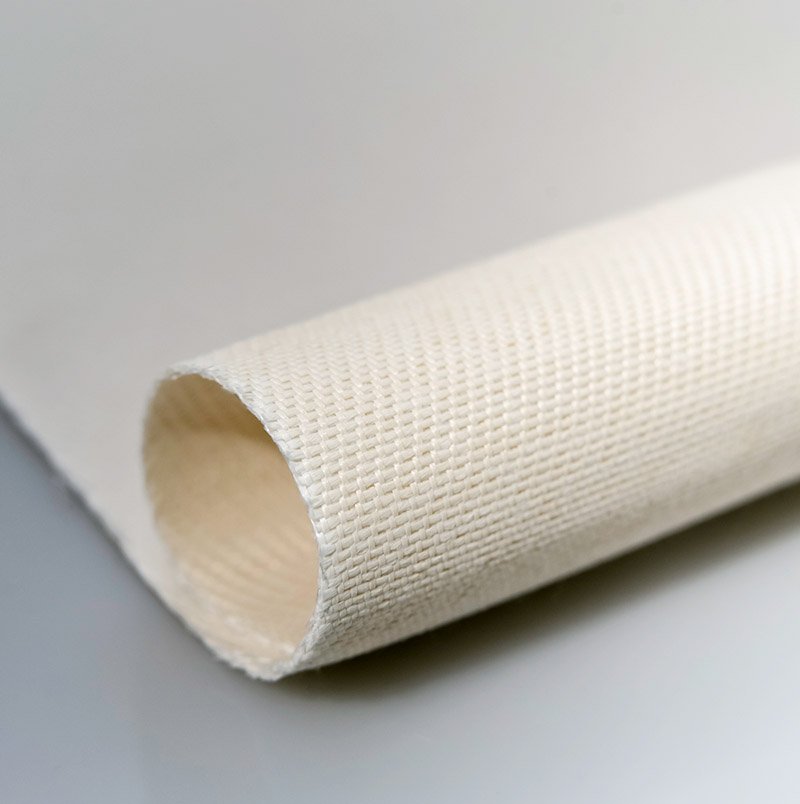

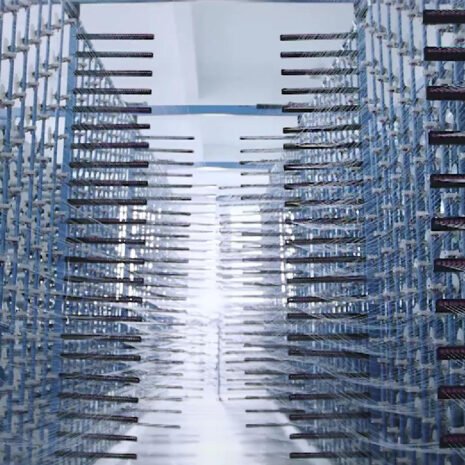

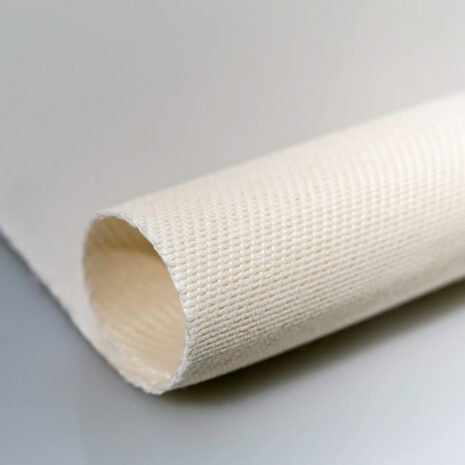

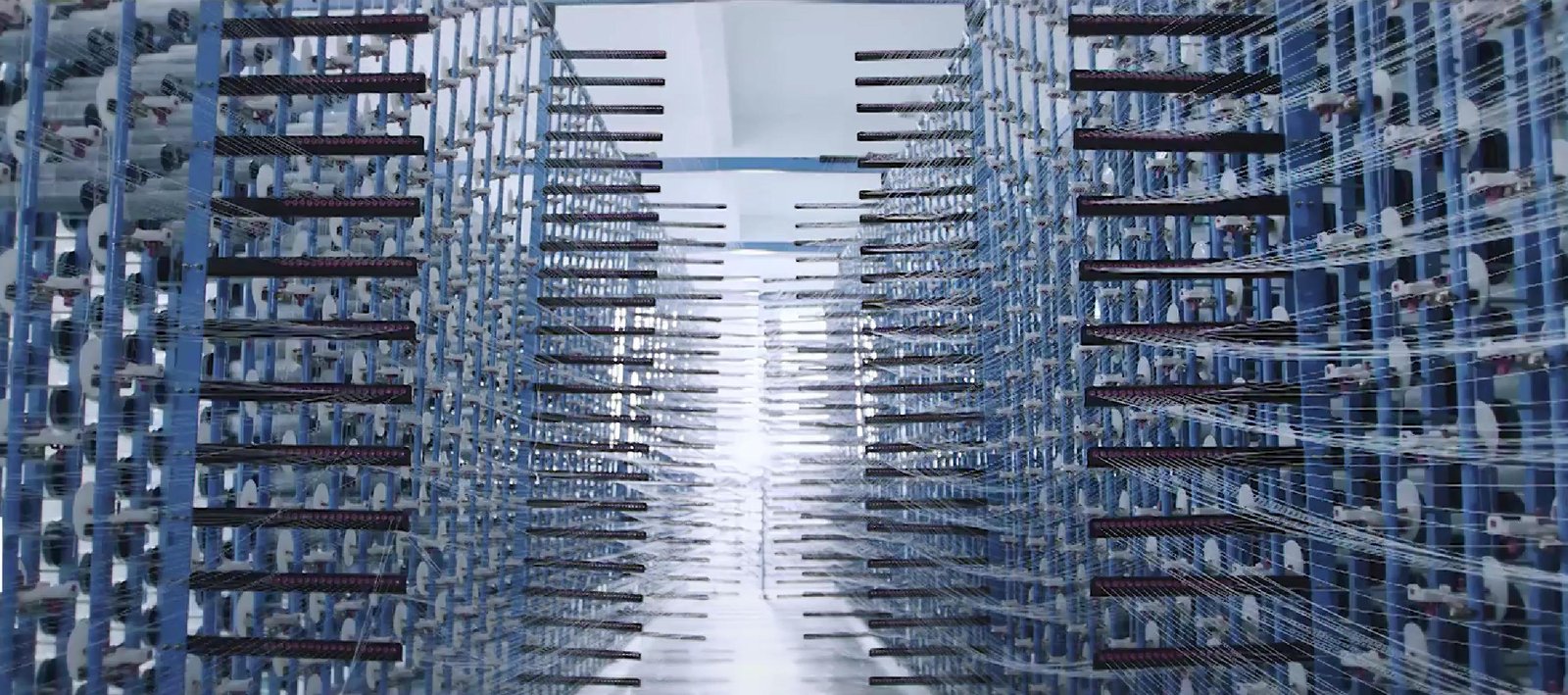

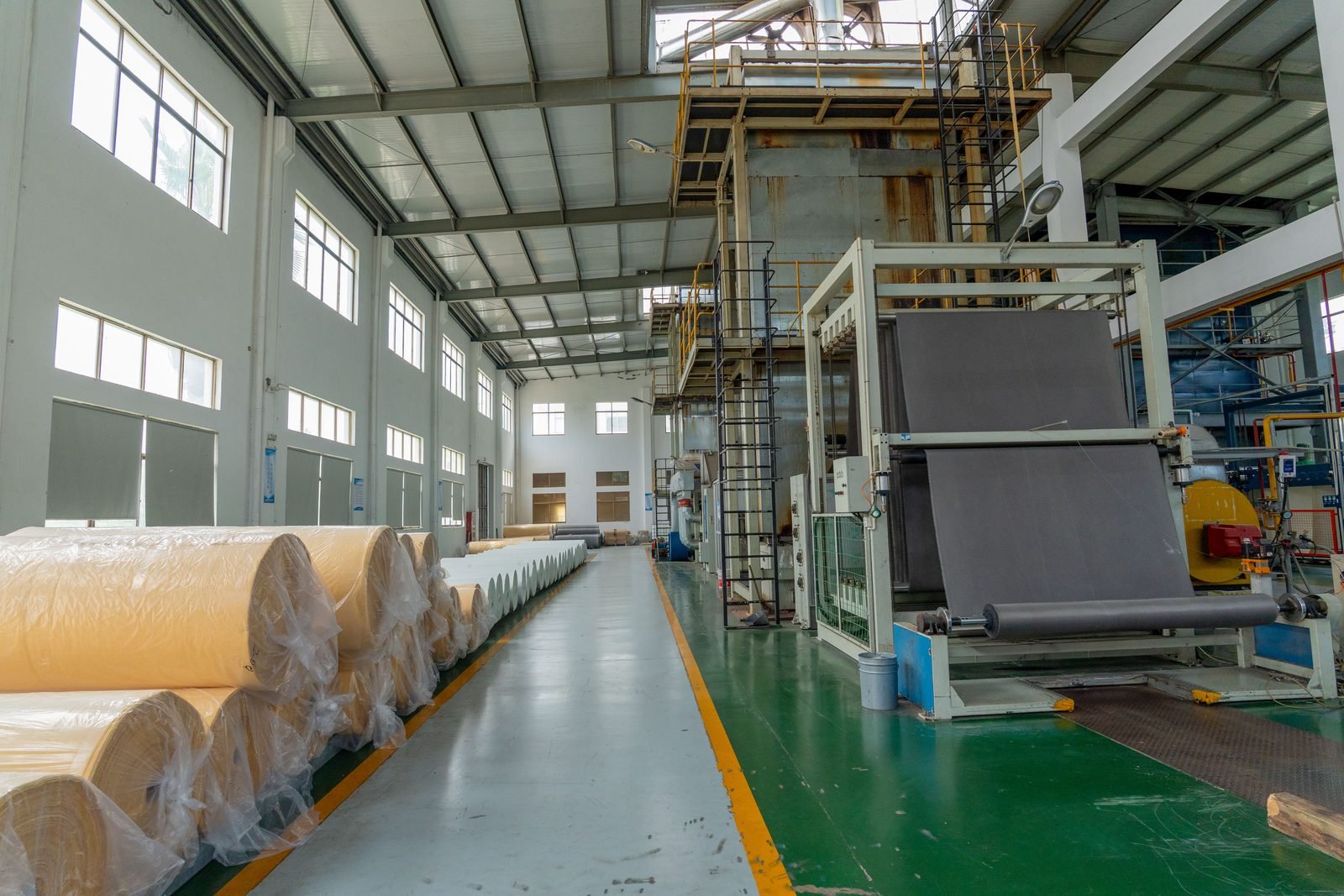

From Glass Fabric to Finished Bag Construction

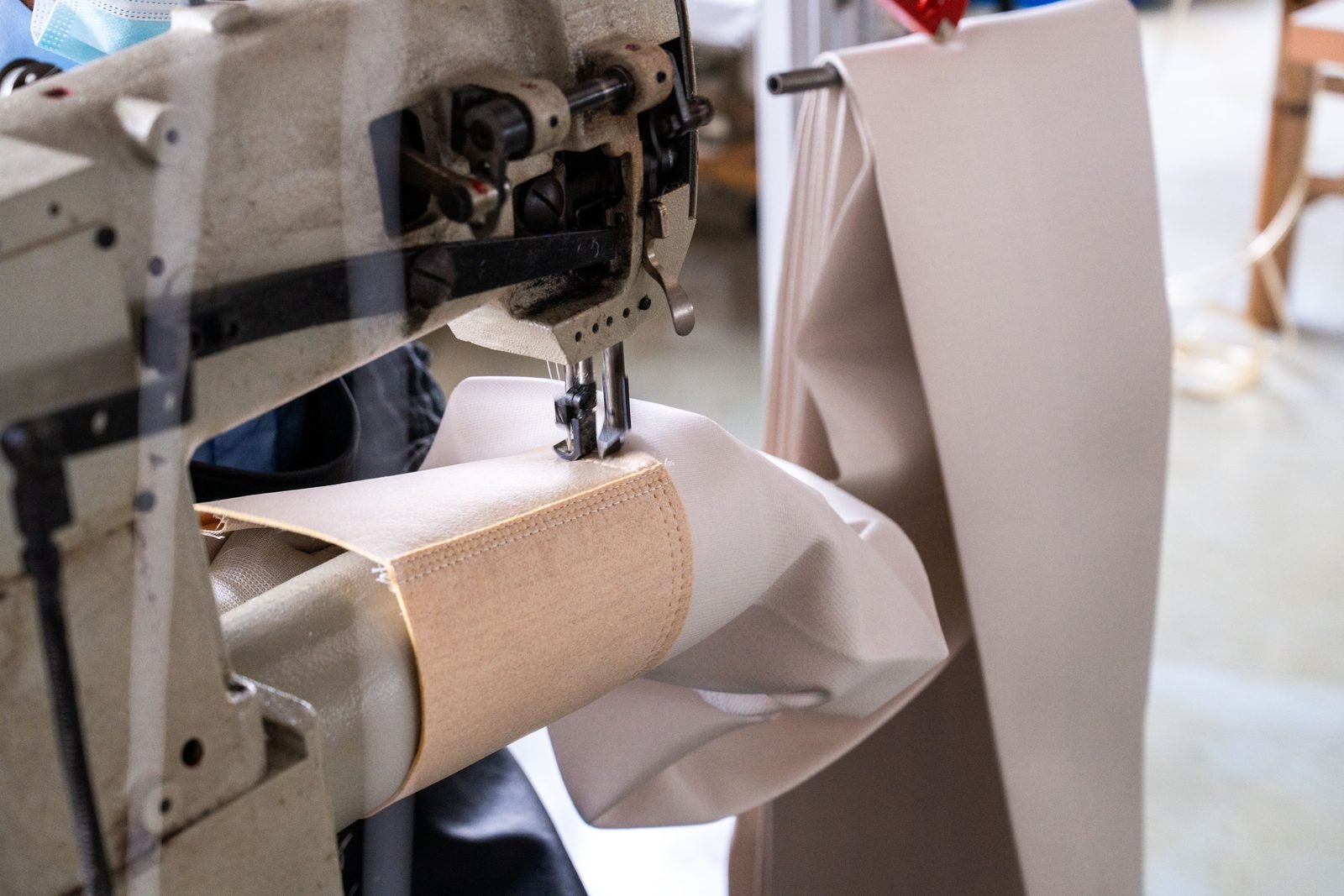

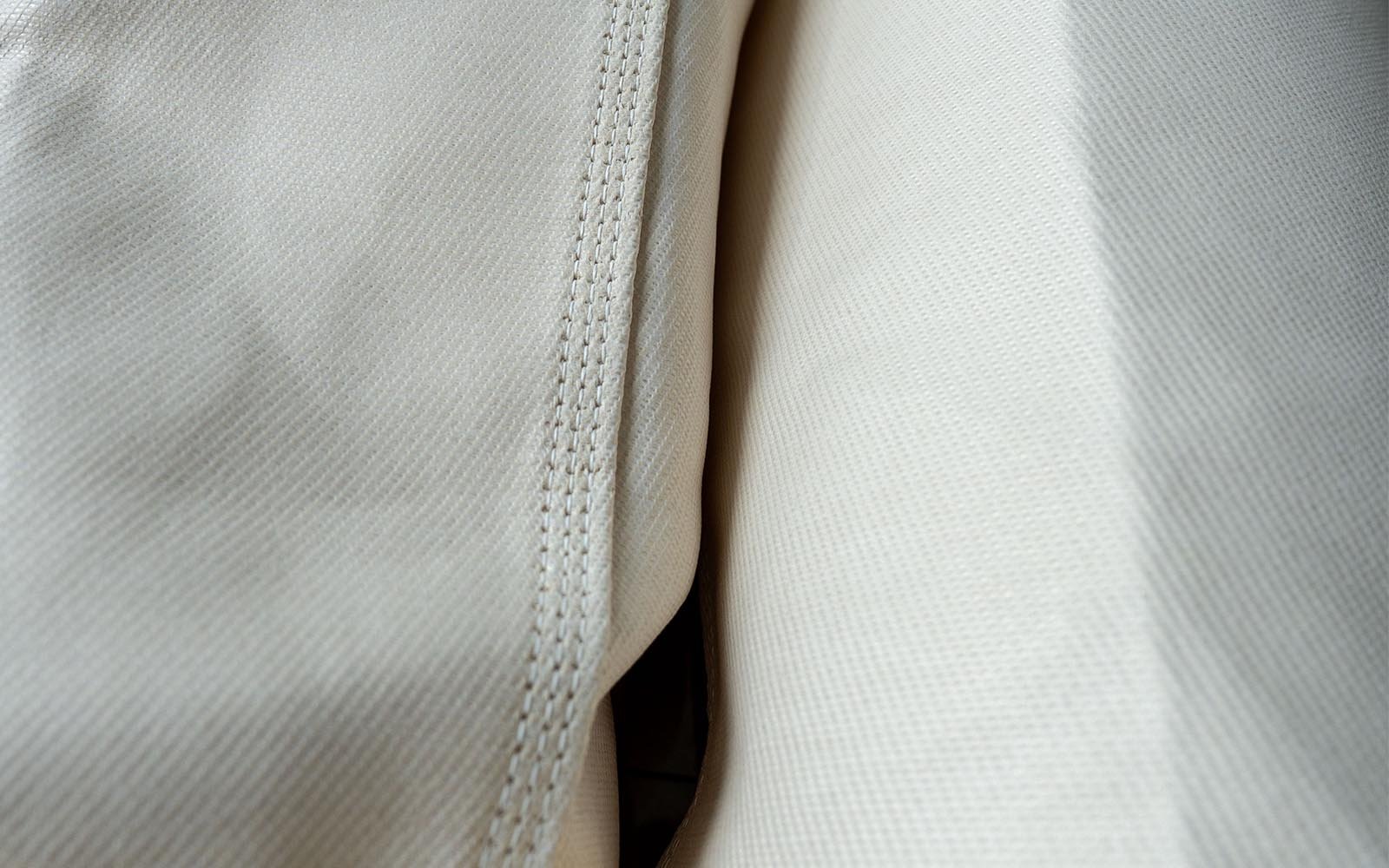

Fiberglass is not only a temperature number. The fabric weight, finish, sewing thread, top design, bottom reinforcement and cage fit all affect service life in a real baghouse.
Best-fit industries
Cement kiln, clinker cooler, steel, foundry, carbon black, asphalt and waste incineration projects often review fiberglass when high temperature and dimensional stability matter.
High-temperature advantages
Why Buyers Choose Fiberglass
Dimensional stability
Fiberglass can hold shape under high-temperature operation.
PTFE membrane option
Surface filtration can help lower emissions and improve dust release.
Acid treatment option
Finish can be selected for acidic gas conditions.
Custom construction
Snap band, corded top, flange top, reinforced bottom and PTFE thread can be specified.
What to confirm
Fiberglass RFQ Details
| Item | What Pinnacle checks |
|---|---|
| Temperature | Continuous and peak temperature, including short-term spikes. |
| Gas condition | Acid gas, oxygen, moisture and chemical composition. |
| Dust behavior | Fine, abrasive, sticky or heavy dust loading. |

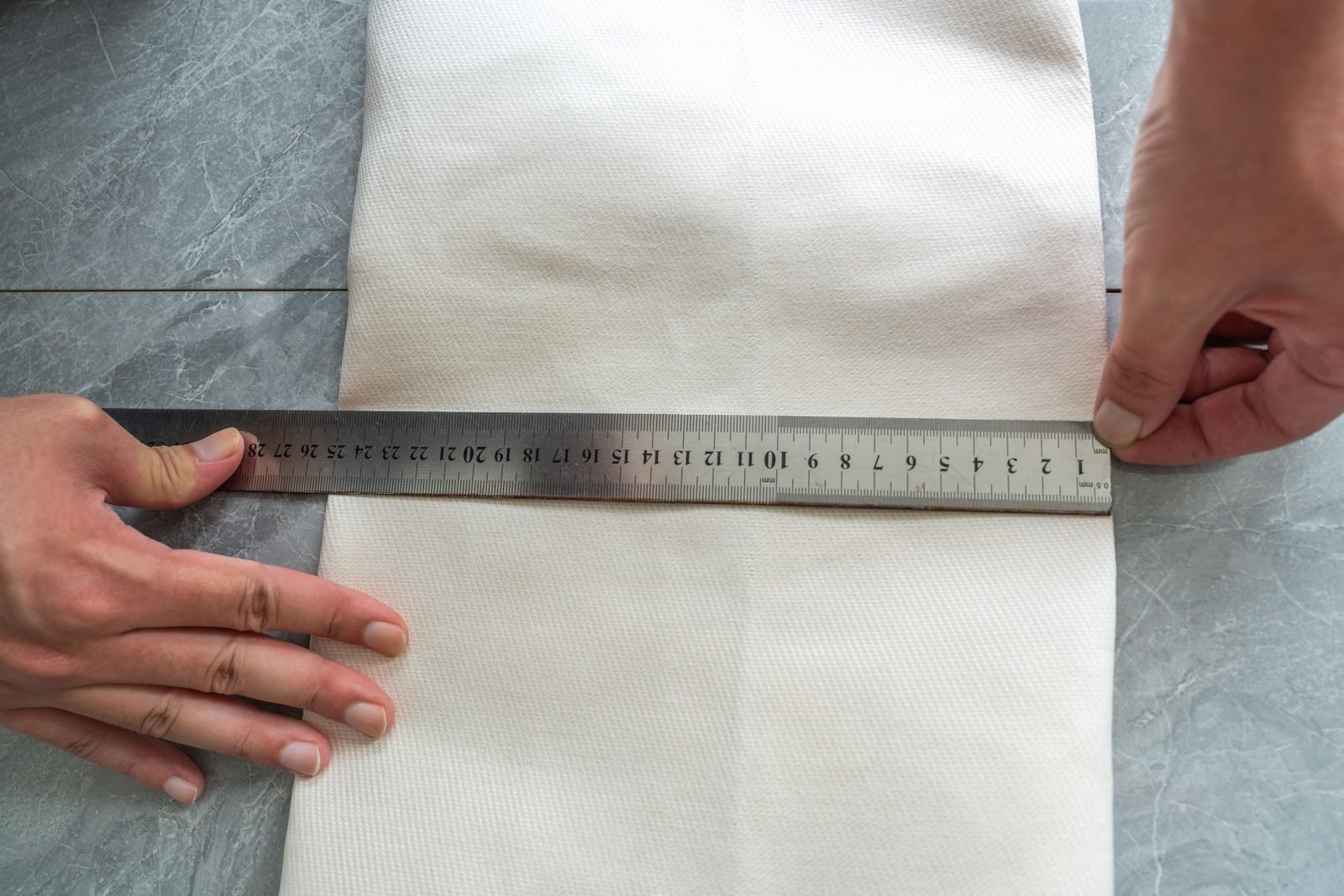

| Collector fit | Cage diameter, tube sheet, top/bottom design and cleaning method. |
Technical selection guide
Fiberglass Filter Bag Specifications, Applications and Selection Notes
Fiberglass filter bags are built for high-temperature baghouse dust collection where dimensional stability and woven media matter. They are often combined with PTFE membrane, acid treatment or special sewing construction for cement, steel, foundry and incineration systems.
| Typical temperature direction | High-temperature filtration; confirm continuous and peak temperature before final selection. |
|---|---|
| Media options | Fiberglass fabric, PTFE membrane, acid treatment and other surface treatments. |
| Construction options | Snap band, corded top, flange top, reinforced bottom, PTFE thread and custom seam. |
| System fit | Cage diameter, tube sheet, pulse cleaning and handling strongly affect service life. |
Where This Fiberglass Filter Bag Is Commonly Used
Cement kiln / clinker cooler
High heat and dimensional stability are key concerns.
Steel and foundry
Hot gas filtration with abrasive dust.
Waste incineration
May need membrane or acid-resistant treatment.
Carbon black / minerals
High-temperature process dust collection.
Operating Boundaries to Check
- Low flex resistance compared with needle felt: Cage fit and handling must be controlled.
- Severe corrosion: PTFE or special treatment should be reviewed.
- Poor installation: Glass fibers can be damaged by rough handling.
- Aggressive pulse cleaning: Can shorten life if pressure and cage fit are wrong.
Common Failure Causes
- Broken fabric or cracks: Handling, cage fit or flex fatigue may be the cause.
- Dust leakage: Membrane damage, top sealing or seam issue should be checked.
- High pressure drop: Dust cake release and cleaning setting need review.
- Bottom wear: Reinforced bottom or airflow adjustment may be needed.
Selection Advice from Pinnacle Filter
For fiberglass projects, send temperature profile, gas chemistry, dust characteristics, cage size and photos of old bags. Pinnacle can recommend fabric weight, membrane, acid treatment and sewing design for the actual baghouse.
Related product pages and next steps
Pinnacle Filter Support
Request a Fiberglass Bag Recommendation for Your Baghouse
Send bag size, working temperature, gas chemistry, dust type and current problem. Pinnacle will recommend fiberglass weight, finish and sewing design.
Fast RFQ checklist
Buyer Questions
FAQ
Is fiberglass suitable for cement plants?
Yes. It is commonly considered for high-temperature cement baghouse applications.
Can fiberglass use PTFE membrane?
Yes. PTFE membrane can improve surface filtration and dust release.
What can shorten fiberglass bag life?
Rough cages, wrong pulse pressure, poor handling, chemical attack or incorrect bag-to-cage fit.
