Baghouse fit, cages and construction
Baghouse Filter Bag Fit: Cleaning System, Cages and Construction
This page helps buyers review baghouse filter bag fit before ordering: cleaning system, cage condition, tube-sheet seal, media and top-and-bottom construction. For a general industrial filter bag request, start with Industrial Filter Bags.
Quick Answer
Baghouse Filter Bag Fit: Specify the Bag and Support Together
Baghouse filter bags are fabric filter elements used in baghouse dust collectors to capture particulate matter from industrial exhaust gas. They can be designed for pulse jet, reverse air and other baghouse systems with different media and top constructions.
Baghouse system review
Match the Bag to the Cleaning System and Collector Design
Cleaning method
Identify pulse-jet, reverse-air or other collector cleaning arrangements before confirming the bag construction.
Seal and support
Review the bag drawing, tube-sheet opening, top connection and cage dimensions as one fitted assembly.
Process performance
Record the process location, operating conditions, pressure-drop behavior and emission requirement for the system review.
Factory Photos

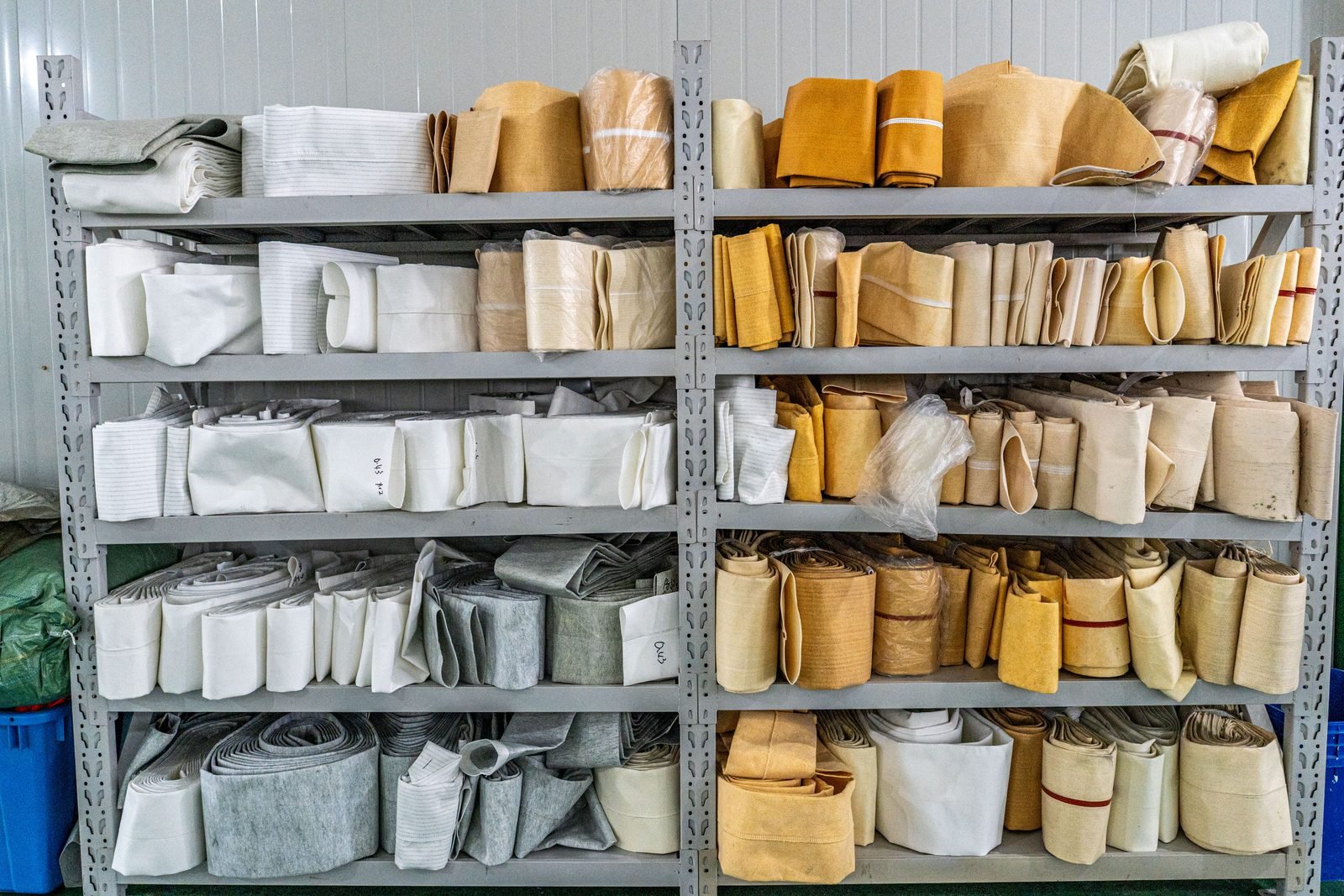

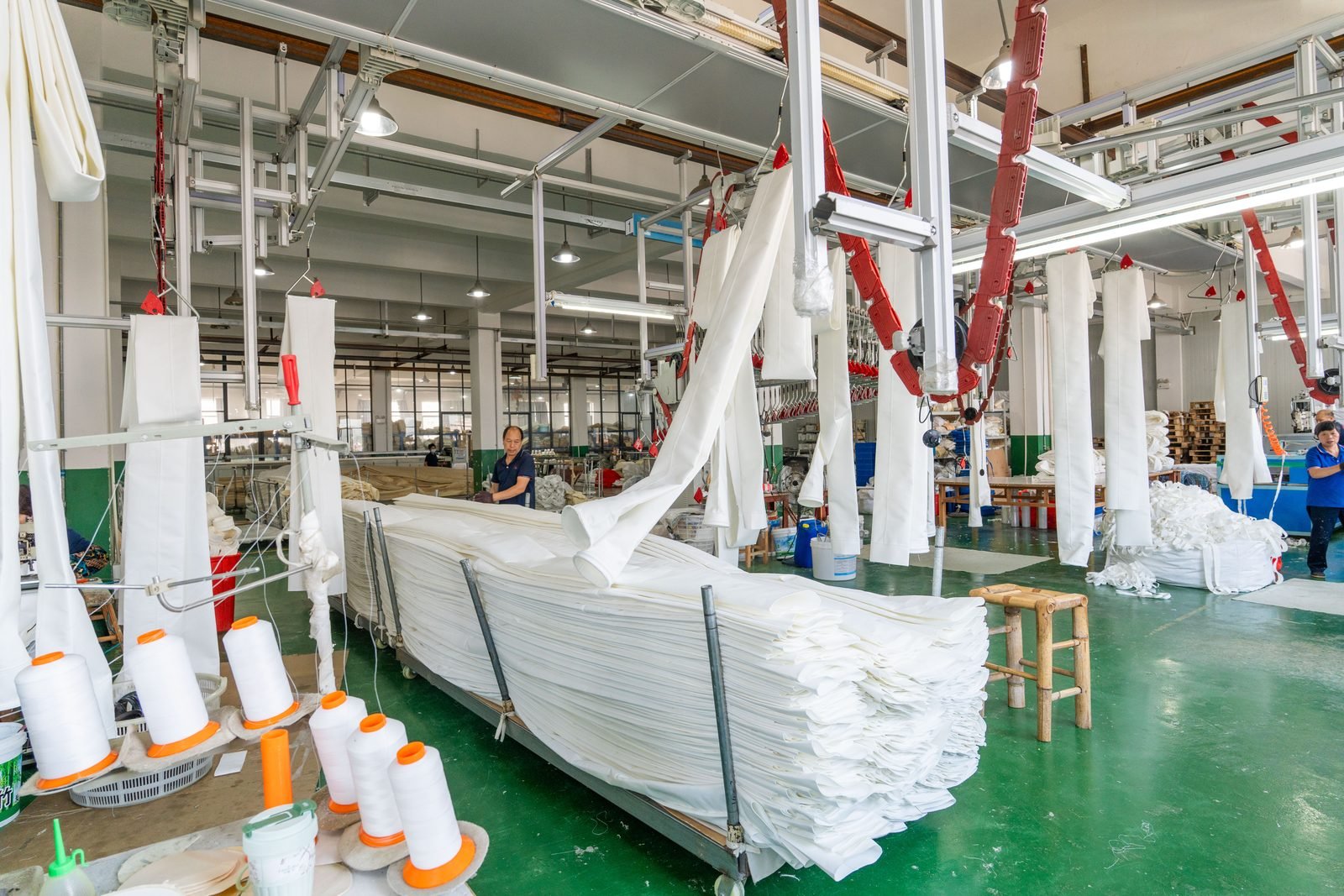

Baghouse Bag Construction in the Factory
A baghouse bag is not selected by material name alone. The media, seam direction, top hardware and packing method all affect fit and service life.
Material Direction
Common Filter Bag Material Choices
| Working condition | Possible material | Selection note |
|---|---|---|
| Cement baghouses | Fiberglass, P84, PPS or polyester | Depends on kiln temperature, dust abrasion, moisture and gas chemistry. |
| Asphalt plants | Aramid, PPS or treated polyester | Heat, oil mist and sticky dust should be reviewed. |
| Steel plants | Fiberglass, P84, PTFE or composite media | High temperature and abrasive dust are common concerns. |
| Power boilers | PPS, PTFE or fiberglass | Moisture, oxygen and acid gas strongly influence material choice. |
| Woodworking systems | Polyester or anti-static polyester | Dry dust, static risk and dust release behavior matter. |
Product Links
Review Specific Filter Bag Materials
Technical Reading
Helpful Guides Before Quotation
RFQ Checklist
Prepare the Baghouse Specification for Review
Identify the collector and cleaning method, then provide the bag drawing, tube-sheet opening, cage dimensions, bag quantity and operating conditions. Include the process location, pressure-drop trend and emission requirement where available. Review the bag, seal, cage and cleaning system together before confirming the order.
FAQ
Common Buyer Questions
Are baghouse filter bags the same as dust collector filter bags?
The terms often overlap. Baghouse filter bags usually refer to filter bags used inside industrial baghouse dust collectors, while dust collector bags may also include smaller or application-specific systems.
Which baghouse filter bag material is best?
There is no single best material. The correct choice depends on temperature, dust, moisture, oxygen, acid or alkaline gas, abrasion and emission target.
Can Pinnacle Filter supply custom baghouse bags from China?
Yes. Pinnacle Filter supplies custom industrial baghouse filter bags from China with material, finish, top construction and size reviewed according to the project.
Specify Filter Bags for Your Baghouse
Share the collector design, cleaning method, operating conditions and bag drawing. We will review the material and construction requirements together before quotation.
Request a Baghouse Bag ReviewChoose the next technical check
A baghouse issue may require a system check before changing material or placing a replacement order.
