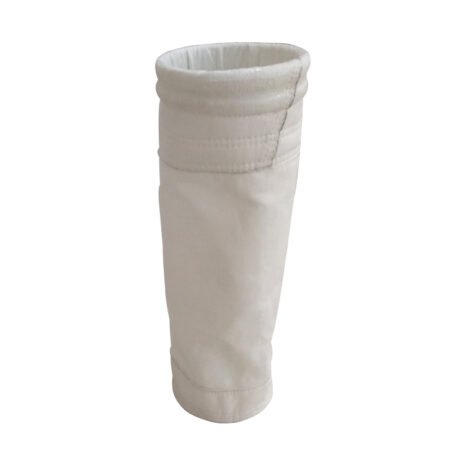

Polyester Filter Bag
Polyester filter bags are a cost-effective choice for dry, standard-temperature baghouse dust collection.
- Typical use: cement, minerals, woodworking, powder handling and general industrial dust.
- Custom construction: diameter, length, snap band, ring top, bottom reinforcement and seam design.
- Selection note: not ideal for high moisture, high heat, strong acid/alkali or hydrolysis risk.
Send bag size, temperature, dust type and current bag life. Pinnacle will help confirm whether polyester is suitable before quotation.
Description
Standard dust collection workhorse
Polyester Filter Bags for Cost-Controlled Standard Dust Collection
Polyester is the practical first choice for dry, normal-temperature baghouse dust. This page helps buyers decide when polyester is enough and when a higher media should be reviewed.
Practical buying logic
Where Polyester Usually Wins
General dust collectors
Stable performance for cement, minerals, powder and many standard industrial dust streams.
Replacement projects
Easy to quote from old bag size, drawing, tube sheet or dust collector model.
Controlled maintenance cost
Good direction when the buyer needs predictable replacement cost more than premium resistance.
Anti-static upgrade path
Can be reviewed with conductive yarn or fiber when combustible dust risk exists.
Upgrade triggers
When Polyester Is Not the Right Answer
A cheaper bag becomes expensive if it fails early. Pinnacle checks the limits before recommending polyester.
Compare Before Ordering
Polyester is often the starting point, not the final answer. Use it when the dust is dry, temperature is normal and chemical attack is limited.
Technical selection guide
Polyester Filter Bag Specifications, Applications and Selection Notes
Polyester filter bags are usually the first material to review when the dust collector runs at normal temperature, the gas is dry, and the buyer needs a stable but cost-controlled replacement bag. Pinnacle uses polyester as a practical baseline, then checks whether moisture, heat, acid/alkali or combustible dust risk should push the project toward another media.
| Typical temperature direction | Standard / normal-temperature dust collection; confirm continuous and peak temperature before ordering. |
|---|---|
| Dust condition | Dry, non-corrosive or mildly abrasive industrial dust. |
| Available constructions | Snap band top, ring top, corded top, reinforced bottom, custom seam and anti-static option. |
| Common finishes | Heat setting, singeing, calendaring, oil/water repellent or conductive design when required. |
Where This Polyester Filter Bag Is Commonly Used
Cement and minerals
General dry dust collection where gas temperature is controlled.
Woodworking dust
Economical media; anti-static review may be needed.
Powder handling
Suitable when dust is dry and not chemically aggressive.
Replacement bags
Often quoted from old sample, drawing or dust collector model.
Operating Boundaries to Check
- High moisture or hydrolysis risk: Consider acrylic or PPS instead of standard polyester.
- High heat: Review aramid, PPS, FMS or fiberglass.
- Strong acid / alkali: Review PPS, PTFE or another chemical-resistant direction.
- Combustible dust: Check anti-static polyester or another conductive construction.
Common Failure Causes
- Early hardening or shrinkage: Temperature may be higher than expected.
- Sticky dust cake: Dust release or surface finish may be wrong.
- Bottom abrasion: Check inlet airflow, cage condition and bottom reinforcement.
- Dust leakage: Check top fit, tube sheet, seam and installation.
Selection Advice from Pinnacle Filter
Choose polyester when the plant wants an economical filter bag for dry, normal-temperature dust and there is no strong chemical or moisture risk. If the current bag life is short, send old bag photos so Pinnacle can tell whether the issue is material selection, cage wear, top sealing or cleaning adjustment.
Related product pages and next steps
Pinnacle Filter Support
Send Basic Working Conditions for a Polyester Bag Quote
Bag size, temperature, dust type and current bag life are enough for a first review. Drawings or old bag photos make quotation faster.
Fast RFQ checklist
Buyer Questions
FAQ
Is polyester suitable for cement dust?
Yes, for many dry and moderate-temperature cement or mineral dust collectors. High heat or moisture should be checked first.
Can polyester bags be anti-static?
Yes. Conductive fiber or yarn can be evaluated for combustible dust systems.
What information is most useful?
Diameter, length, quantity, temperature, dust type, moisture, cleaning method and current bag life.
